A16D2 Multipurpose Analog I/O Module

• Overview

• Feature

• Specifications and Data Sheets

• Block Diagram

• Return to M67 Base Board Page

• About the Design and Manufacture of the A16D2

• Analog I/O Breakout Panel

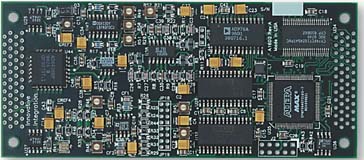

Click here to see full size image

Overview

Each A/D is a converter eliminating the need for space-consuming analog anti-alias filters. Each channel is capable of up to 195 kHz conversion rates.

Each input is differential ±10V, using high accuracy instrumentation amplifiers. All channels feature software controlled calibration (external references required).

Compatible host DSP cards are available with C6701, or C6201 DSP processors on PCI and cPCI platforms to meet a wide range of processing power, cost and host platform requirements.

Powerful host software development tools are available, including the DirectDSP software which provides Visual Studio, MATLAB, and LabVIEW support for the host boards and A16D2 module.

Features Summary

• Sixteen (16) independent 16-bit analog input channels, simultaneous conversion on all channels

• Sampling rate up to 200 kHz per channel

• High level of dc accuracy - channels are not ac-coupled

• Compatible with M67 PCI and cPCI boards

• Supported by Real-Time Composer™, DirectDSP, and Hypersignal software

A16D16 Specifications and Data Sheets

• A16D2 Data Sheet (147KB)

• A/D Converters: Analog Devices AD976 (236 KB)

A16D2 Block Diagram
