Computational Finance Using CIM Accelerators
|
| Black-Scholes formula. Picture credit derivstrategies.com |
|

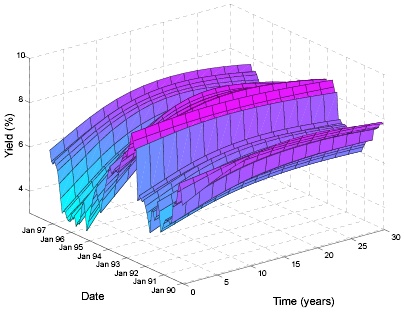

| Yield vs. time. Picture credit Cornell Computer Science, 2005 |
|
| Value-at-risk optimization curve. Picture credit McCormick School of Engineering and Applied Science, Northwestern Univ, 2009 |
Overview
Computational finance problems and applications often require numerical methods to reach a confident solution in a short amount of time. The numerical methods used are computationally complex, for example Monte Carlo simulation, partial differential equations (PDEs), Fourier transform. and other complex algorithms. In cases where market behavior (and thus human behavior) is being modeled or approximated, confidence level is affected by 1000s, if not hundreds of thousands, of factors. To account for these factors and the high degree of complexity -- and still produce a solution in a timely manner, on the order of minutes or hours as opposed to days or weeks -- high performance computing (HPC) is used. Applying HPC to computational finance problems typically requires a supercomputing system, usually in the form of clusters of servers1 or "server farms" (sometimes referred to in general as a data center). To achieve cost-effective supercomputing, it's crucial to make efficient use of servers, which consume space, energy, and manpower to program and maintain. Supercomputing servers that contain CIM accelerators2 provide a solution. For example, a single 1U server with four (4) CIM accelerator cards and CIM software installed can provide up to 5 Teraflops, with additional power consumption (i.e. energy consumption increase over the server alone) less than 300 W3. 20 such servers, installed in one 40" x 19" rack can provide 100 Teraflops of processing performance at under 10 kW.Applications
Computational finance encompasses many applications which can benefit from HPC, and in particular from CIM acceleration in constrained situations, such as limited space to build and maintain server clusters and data centers, or a need to economize energy and cooling costs. Financial data privacy may also be a concern, imposing requirements on the location and size of data centers. Some application4 examples include:- Risk Management
- Value at risk calculations
- Credit default swap (CDS) calculations
- Derivatives trading
- Options pricing based on Black-Scholes and binomial methods
- Modeling stochastic processes
- Insurance applications
- Modeling extreme events
- Insurance derivatives, catastrophe bonds, and equity-linked life insurance
Source Code Examples
Below is an option pricing source code example, based on the Black-Scholes method, marked with CIM pragmas to accelerate compute-intensive sections of code. Note that CIM pragmas and API calls follow the OpenMP convention (highlighted in yellow below).
/*
Black-Scholes based option pricing using OpenMP
Copyright Univ of Manitoba Computational Finance Lab, 2011
Authors:
Dr. Ruppa K. Thulasiram, Computer Science, Univ of Manitoba, CFD Lab
Dr. Parimala Thulasiraman, Computer Science, Univ of Manitoba
Bhanu Sharma, Computer Science, Univ of Manitoba
OpenMP pragmas modified to use 'cim' keyword, Signalogic, Oct 2011
*/
#include <cim.h>
#include <stdio.h>
#include <math.h>
#include <string.h>
#include <stdlib.h>
#define max(a,b) a > b ? a : b
int main(int argc,char** argv) {
double s=10, t=1, r=0.12, u=2, d=0.5, k=5, e=2.71828183;
int j=0,i=0, n=7, level=0, tid;
#ifdef _PRINT_DEBUG_
double start = cim_get_wtime();
#endif
double dt=(double)(t/n);
double p1=exp(r*dt);//=pow(e,r*dt);
double p= (p1-d)/(u-d);
int length= (int)pow(2.0,(double)n);
double disc=pow(e,-r*dt);
double *st;
st = (double*) malloc(sizeof(double)*length);
memset(st, 0, length*sizeof(double));
double *c;
c = (double*) malloc(sizeof(double)*length);
double result=0.0;
st[0]=s*(double)pow(d,n);
st[1]=st[0]*(u/d);
#ifdef _PRINT_DEBUG_
int num= cim_get_num_procs();
printf("number of CIM cores-->%d\n",num);
#endif
// Calculating the stock price at the leaf nodes
cim_set_num_threads(length-2);
#pragma cim parallel private(j) shared(st) {
for (j=2; j<length; j++) {
if (((j%2==0) && (st[j/2]!=0)) || ((j%2!=0) && (st[j-1]!=0))) {
#pragma cim critical {
if (j%2==0)
st[j]=st[j/2];
else
st[j]=st[j-1]*(u/d);
}
}
}
}
// Calculating the option values at the leaf nodes
cim_set_num_threads(length);
#pragma cim parallel for private(j)
for (j=0; j<length; j++)
c[j]=max(0.0,st[j]-k);
// Going back through tree to the root
cim_set_num_threads( (int)pow(2.0,(double)(n-1)) );
#pragma cim parallel private(tid, level) {
tid = cim_get_thread_num();
for (level=0 ; level<n ; level++) {
if (tid<pow(2.0,(double)(n-level-1))) {
int index1 = tid*(int)pow(2.0, level+1);
int index2 = tid*(int)pow(2.0, level+1) + (int)pow(2.0,(double)level);
// c[tid*2]= disc*(p*c[tid*2] + (1-p)*c[tid*2+(int)pow(2.0,(double)level)]);
c[index1]= disc*(p*c[index1] + (1-p)*c[index2]);
}
#pragma cim barrier
}
}
#ifdef _PRINT_DEBUG_
printf("the result is %f\n",c[0]);
printf("total execution time=%f",cim_get_wtime()-start);
#endif
}
NOTES
1 The term "server", as used here, means a typical x86 based 1U or 2U rack-mount server, with one x86 CPU of no more than 95W TDP (thermal design power), running a version of Linux OS.2 CIM = compute intensive multicore.
3 W = Watts, the standard measure of power consumption.
4 Ethics note. The company takes a position in two (2) specific application areas: (i) high-frequency trading and (ii) CDS bets where participants may insert themselves in the consequences. If we know these are the applications, we reserve the right to not sell the product.
