LabView Source Code Example

Below is a LabView example of interfacing to DSP/data acquisition boards using DirectDSP® software. The example below shows excerpts from block diagram, instrument panel, and .VI libraries for a simple digital oscilloscope example. Note the extensive low-level and high-level VIs and the flexibility of interfacing to a list of supported DSP/data acquisition hardware directly from LabView.

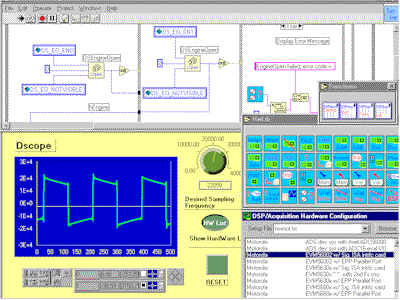

Digital Oscope Front Panel with Diagram Window

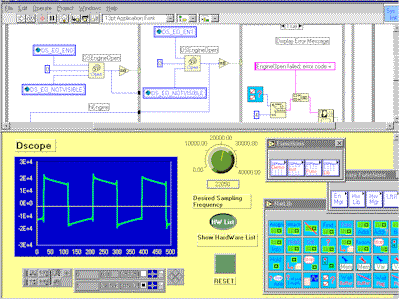

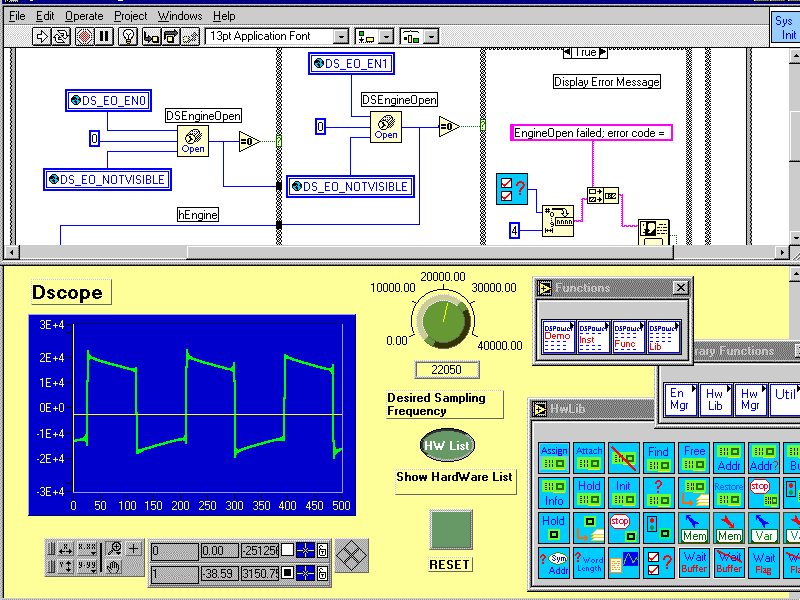

DirectDSP® Functions Palette

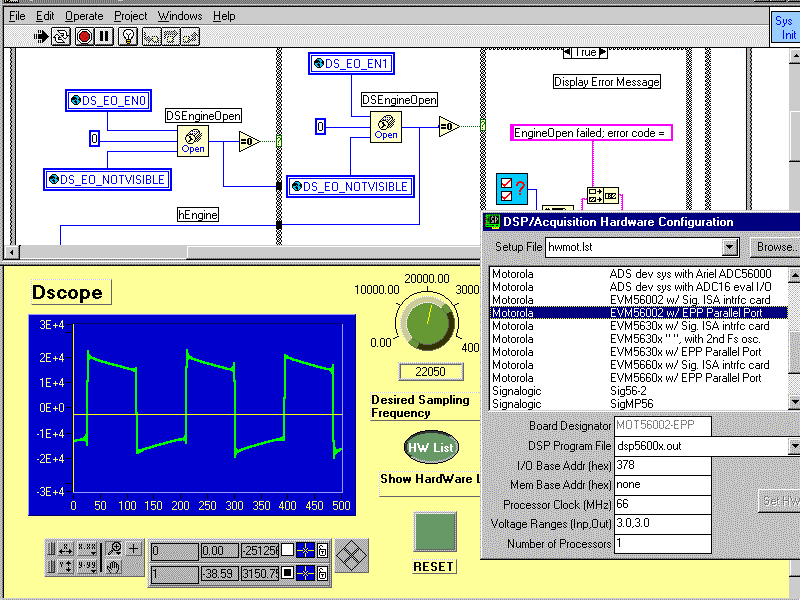

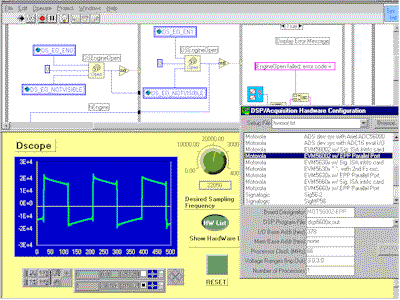

DirectDSP® Hardware Selector Dialog Box
