Network Configuration Examples

Below are examples of network configurations using the SigC5561 card and SIP software running on Linux based x86 server platforms.

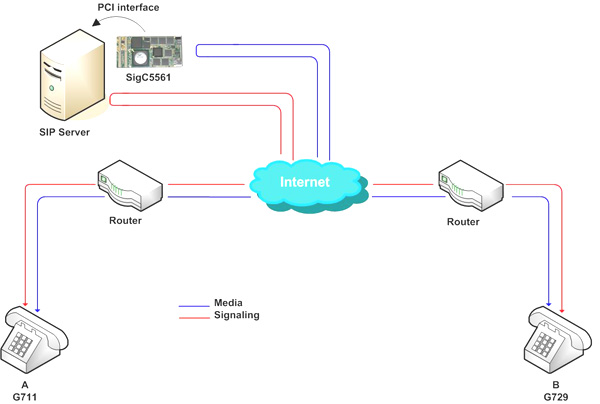

Fig. 1 Combined signaling and media server topology

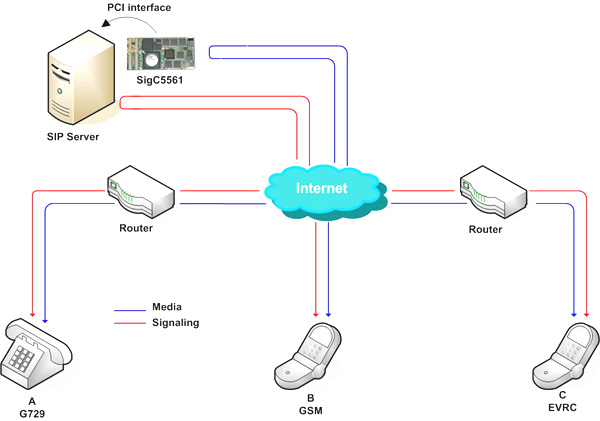

Fig. 2 Fixed Mobile Convergence(FMC) support

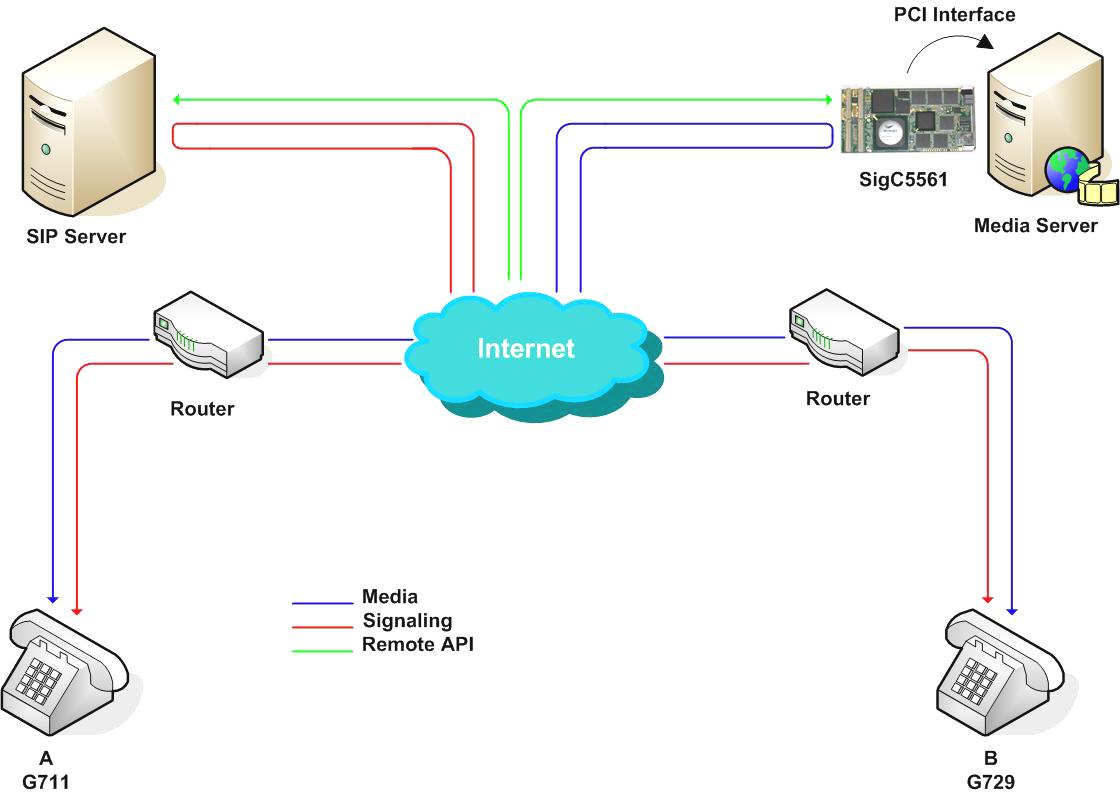

Fig. 3 Remote media server topology
