SigC44-PC/104 DSP Board

NOTE: "This board is not recommended for new designs" - See other page examples.

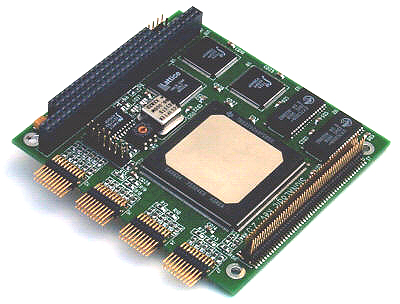

Click here for full-size picture

The SigC44-PC/104 DSP board combines the power of a 32-bit floating-point TMS320C44 DSP with up to 1.5M x 32 SRAM and high-speed, multiple I/O paths for connectivity to digital I/O, analog I/O, other peripheral PC/104 boards, or other 'C4x processors.

When installed on an ISA carrier board for development purposes or host PC application, the SigC44-PC/104 is fully supported by Signalogic's Hypersignal®-Macro, Hypersignal-Acoustic, and DirectDSP  software packages. The DirectDSP software provides host platform support for the SigC44 from C/C++, MATLAB, Visual Basic, and LabVIEW programs.

Primary uses are in the embedded applications of instrumentation grade measurement, high-resolution control systems, radar and sonar electronics, medical systems, vibration measurement and analysis, and high-frequency acoustic and audio measurement and analysis.

SigC44-PC/104 Feature Summary

  • PC/104 board with complete DSP, onboard SRAM and multiple digital I/O

  • 40, 50, or 60 MHz, 32-bit floating-point Texas Instruments TMS320C44 (50, 40, or 33 nsec instruction cycle)

  • 128k x 32 of onboard zero wait-state SRAM, 512k x 32 of 0 or 1 wait-state SRAM expansion

  • high-speed 32-bit parallel digital I/O GlobalBus

  • optional 1M x 32 expansion SRAM daughterboard; connects directly to GlobalBus for zero wait-state operation

  • four (4) Comm Port connectors

  • 512k x 8 EPROM or FLASH EEPROM site

  • supported by Real-Time Composer™ and Hypersignal software

Click here to see example system diagram

Click here to download Users Guide

SigC44-PC/104 Software Support

The SigC44-PC/104 is fully supported by Signalogic's Hypersignal®-Macro and Hypersignal-Acoustic software packages. In addition, both the board and Hypersignal packages can also be used with DirectDSP, which offers C/C++, Visual Basic, and MATLAB® programming interfaces, which offers block-diagram user-interface, simulation, and source code generation. Used in conjunction with the SigC44-PC/104, the Hypersignal software combination provides sophisticated DSP-based instrumentation, visualization and display of waveforms, block-diagram based automation of development and test sequences, and numerous tools for all levels of DSP product, system, and algorithm development. The complete range of DSP/math functions, interactive waveform display and editing, difference equations, filter design, and real-time code development facilities offered by the software is fully active with the SigC44-PC/104. Display examples include interactive frequency domain waterfall and contour (joint time-frequency), .WAV display, pole-zero, unwrapped phase, and group delay.

Additionally, the TMS320C4x DSP Source Code Interface allows real-time code to be designed, simulated and developed for the TMS320C44, and results downloaded, tested and graphically debugged in real-time with the Hypersignal and Real-Time Composer™ software packages.
