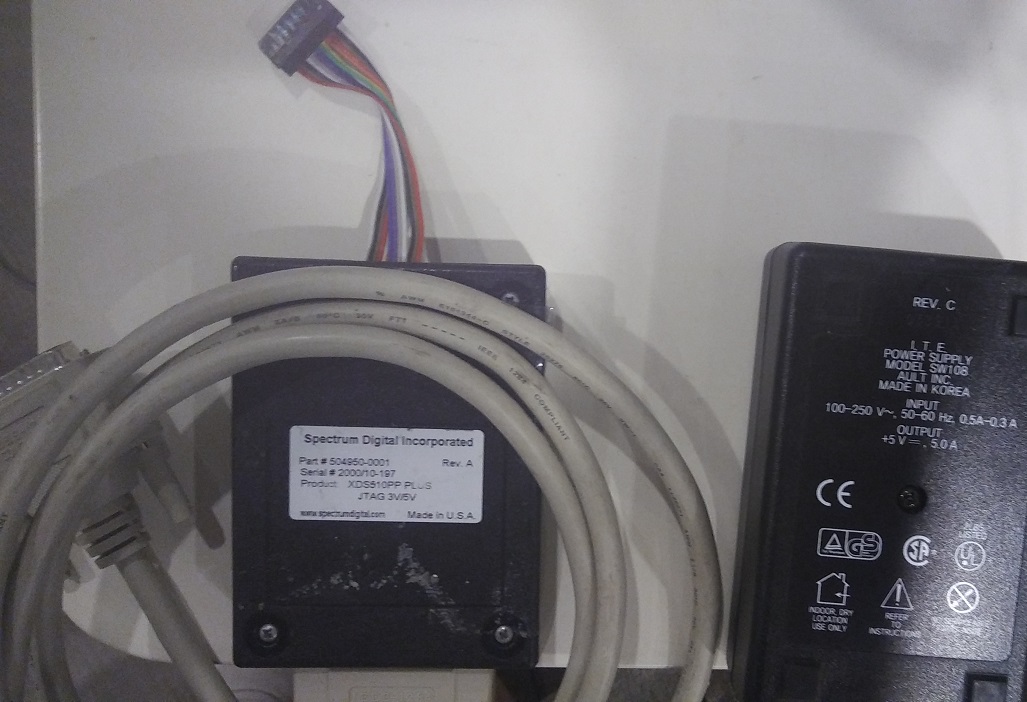

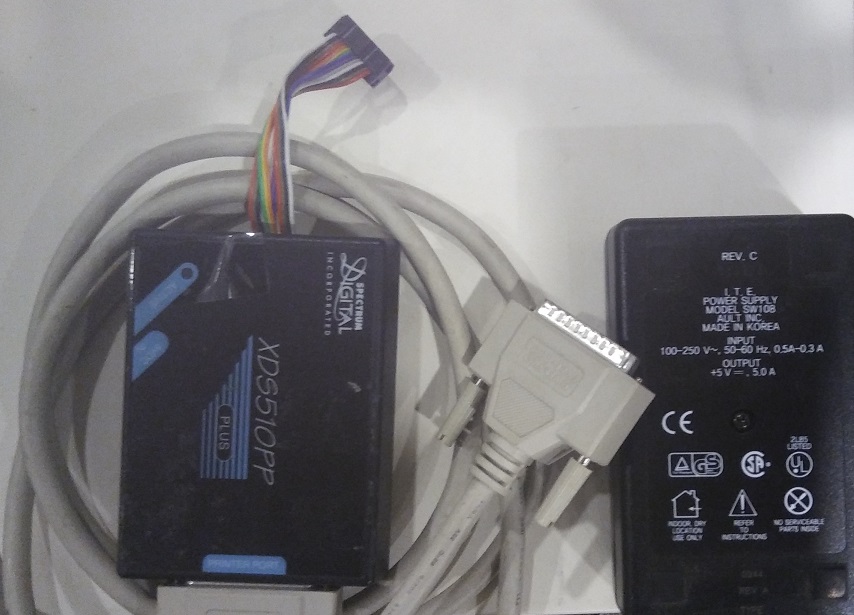

Spectrum Digital XDS510PP PLUS JTAG Scan Path Emulator Pod
Overview
The Specturm Digital XDS510PP PLUS is a portable scan path emulator capable of
operating with the standard JTAG test interface on TI DSPs and Microcontrollers.
This emulator is compatible with the TI Code Composer/Studio development environment and
the XDS510 emulator. This portable emulator works off the parallel port on a PC or laptop
which means no adapter card is required. It can operate with processors that have 3.3V or
5V present on the JTAG header. The XDS510PP is powered by the target (+5V) or the supplied AC adapter.
This emulator supports the Spectrum Digital Flash ROM programming utility. A Windows based configuration utility
is available to aid in hardware setup.
The Specturm Digital XDS510PP PLUS is fully compatible with the Code Composer Studio development
environment, DSP/BIOs, CSL (Chip Support Library) and C5xxx and C6xxx SCI software from Signalogic.
Feature Summary
- Supports TI DSPs and MIcrocontrollers with JTAG interface
- Includes IDC ribbon cable and header for JTAG/MPSD standard emulation connection
- Compatible with Code Composer/Studio and XDS510
- Operates of PCs parallel port, no adapter required.Supports EPP, ECP, and bi-directional port modes
- Support v2.x and v3.x CCS software
- Compatible with WinXP and Win9x
- Compatible with 3.3V and 5V processors
- Parallel port.6 foot.3.3V and 5V
- Powered by target(5V) or supplied AC adapter
- Uses standard TI-supplied drives
- Compatible with SD Config JTAG chain/scan test utility
- Fully documented in
C5xxx/C6xxx Hardware Reference Guide
How to Purchase
Contacting Signalogic and be ready to provide part number and any existing (previous) version informaiton
