SigC542x DSP Module Images

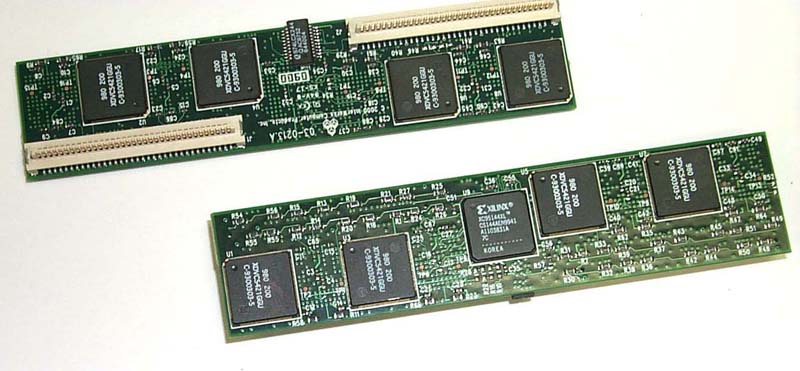

SigC5421-100-CONAN-16 Module

Eight (8) Texas Instruments C5421 100 MHz processors, each dual core (16 total cores) with 132k x 16 SRAM per core. Each module has dual 69-pin latching CONAN connectors for high reliability in motherboard attachment. Module dimensions are 0.875" x 4", or approximately 22 mm x 102 mm.

Each module has a Xilinx 95C144 CPLD which implements the InterWorks-Signalogic Multicore API logic, including advanced features such as broadcast writes and COFF file download, individual core reset control, TDM routing options, and more.
