Cisco PVDM Packet Voice / Data DSP Module

---

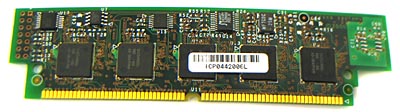

Underside of Cisco PVDM-256k-20 20-channel module shown, with 5 TI DSPs

Front side of Cisco PVDM-256K-20 20-channel module shown, with 5 IDT SRAMs

Cisco PVDM packet voice / data DSP module is also available in -4, -8, -16 and -20 channel.  Please contact Signalogic for pricing & availability

Module can be used with Cisco products;  Analog Station Interface (ASI) Cards and Multi-service Route Processor (MRP) Cards. Each card is a multi-service router card available on the Cisco ICS 7750 (Integrated Communications System). In each card, you can install the modules listed:

ASI81 and ASI160:

PVDM-256K-4= 4 channel

PVDM-256K-8= 8 channel

PVDM-256K-12= 12 channel

PVDM-256K-16= 16 channel

PVDM-256K-20= 20 channel

MRP200, MRP300, MRP3-8FXS and MRP3-16FXS:

PVDM-256K-4= 4 channel

PVDM-256K-8= 8 channel

PVDM-256K-12= 12 channel

PVDM-256K-16= 16 channel

PVDM-256K-20= 20 channel

Cisco MRP 300 Multiservice Route Processor with PVDM-256-20 installed
