SigC641x Wireless Processing
Wireless DSP Board

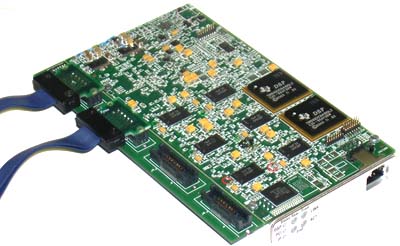

SigC641x PTMC board with signal processing FPGA and DSP
farm shown; Mictor high-speed signal connections shown at left.
|

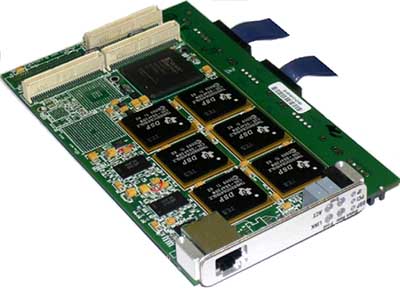

Bottom view of SigC641x PTMC board with signal processing FPGA and DSP farm. Mictor high-speed signal connections shown at right.
|
The SigC641x-PTMC board utilizes a Spartan 3 FPGA to
perform front-end signal processing for IF/RF designs, for example
software defined radio applications. Signal processing functions
such as filter banks, fast convolution and matched filtering can be
implemented in logic, allowing real-time processing at sampling
rates up to 200 MHz. Block functions such as FFT, DCT, and other transforms may allow sampling rates up to 10 MHz,
depending on analysis framesize and transform length.
On the SigC641x board, the Spartan 3 FPGA is connected to the following
high-speed signal busses:
-
external 48-bit signal access (via Mictor connectors)
- PCI bus (32-bit, 33 MHz), available when used in PMC or PTMC sites
- 32-bit access to 1 to 8 onboard Texas Instruments C641x DSPs
(using HPI interface on the DSPs)
- UTOPIA L1 and TDM buses available when used in a PTMC site
The SigC641x-PTMC board provides a high-speed signal processing
solution for a variety of platforms, including cPCI, VME,
desktop PC, and stand-alone. It can also be used with a PC104+
adapter.
Click here for detailed information on the SigC641x-PTMC board.
Block Diagram

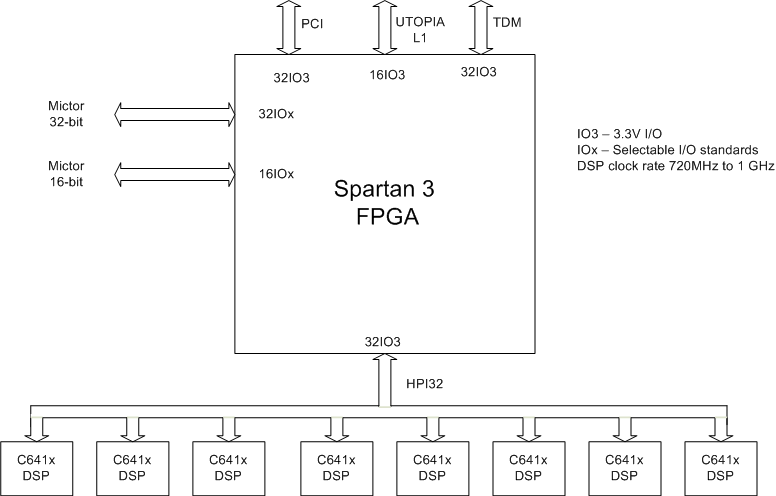

Below is a block diagram showing connections between Spartan 3 FPGA
and external high-speed I/O, local (onboard) bus connections, and
DSP Farm.
