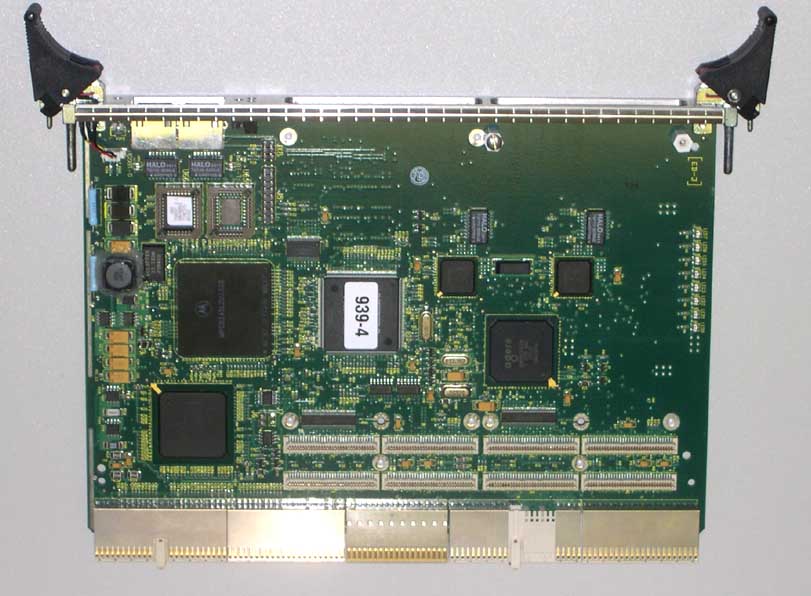

HighWire HW400c/M Gateway and Communication Server cPCI Blade

PTMC core processing platform with PICMG 2.16

MPC8245 PowerPC processor, 333 MHz
Dual CT Bus enabled PTMC Sites
Mix and match PMC and PTMC
Dual front or rear access 10/100 Ethernet
Linux and VxWorks OS support

Overview

One Stop Systems's HighWire series of communications controller products provide high bandwidth intelligent connectivity to servers designed to act as gateways and signaling points within communication networks and network devices. For embedded Linux applications, HighWire products can be coupled with our WAN and LAN PCI mezzanine cards or other third party PMC products to create a highly flexible core computing and connectivity solution for communications, military/government, medical and industrial control markets.

The HW400c/M is a 6U CompactPCI core processor with dual PTMC sites, dual Ethernet, PICMG 2.16 Packet Switched Backplane, and H.110 CT-Bus interfaces. This modular, flexible core processing blade is available in a bundled solution that couples the HW400c/M with TimeSys Linux GPL Software Developers Kit (SDK) to provide a complete blade computing platform for scalable, high-availability networking.

Designed as an advanced technology building block for processor enabled telephony and data communications I/O solutions, the HW400c/M has two modular I/O sites that support both standard PMC and CT Bus enabled PTMC modules. The PTMC sites are linked to a time slot interchanger and full H.110 CT bus interface for a complete TDM switching solution. Two 10/100 Ethernet controllers provide software selectable front or rear panel access or dual node CompactPCI Packet Switched Backplane support.

A 333 MHz MPC8245 PowerPC processor with 64MB of fast SDRAM and an extended Flash memory array provides a core protocol processing engine for servicing installed modules, dual cPSB/Ethernet ports, host PCI, and TDM interface.

HW400c/M-compatible PTMC CT Bus-enabled modules provide channelized DSP, T3, T1, E1, and J1 interfaces and PMC modules for most telecom and data communications applications.

Features

MPC8245 PowerPC processor, 333 MHz
Two CT Bus enabled PTMC sites
Mix and match PMC and PTMC
Dual node 10/100
Dual front or rear access 10/100 Ethernet
H.110 CT Bus interface (4096 timeslots)
32/64-bit, 33/66 MHz PCI 2.2 compliant
Full and basic CompactPCI Hot Swap
Front and rear I/O support
128MB SDRAM
33MB Flash
Optional TimeSys Linux
Developer Kit available

HW400c/M Hardware Specifications

System Processor	Motorola MPC8245 PowerPC
Memory	SDRAM – 128MB Socketed Flash – 1MB Soldered Flash – 8/16/32MB NVRAM – 2KB
PTMC Sites	2 x PICMG 2.15, PT2MC PICMG 2.3 Rear I/O Mapping 3.3V or 5V Signaling
PSB/Ethernet	2 x 10/100 Ethernet Single or Dual Node PSB Selectable Front Panel or PSB
PCI Interface	32/64-bit 33/66MHz PCI 2.2 PICMG 2.1 R2.0 Full Hot Swap
H.110 Interface	PICMG 2.5 CT Bus Interface 4096 Timeslot H.110 2560 Timeslot Local CT Bus
Power Requirements	+5VDC @ approximately 600mA Core +3.3VDC @ approximately 1.5A Core +12VDC @ approximately 45mA Core -12VDC @ approximately 1mA Core PTMC Sites @ up to 7.5W Each Site
Form Factor	6U x 4HP (single slot)
Environmental
Temperature	Operating: -5 to 55C (23 to 131F) Non-operating: -40 to 70C (-40 to 158F)
Humidity	Operating: 5 to 90% non-condensing Non-operating: 0 to 95% non-condensin
Compliance	NEBS, BABT
Certifications	CE, UL, cUL, FCC Class A (all pending)
