OC3 PTMC Module

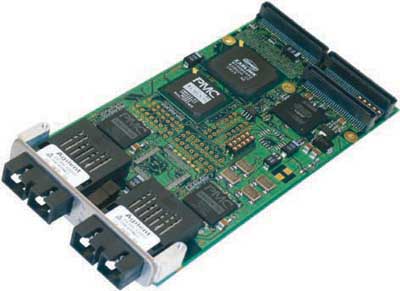

 Above: OC3 STM-1 PMC module

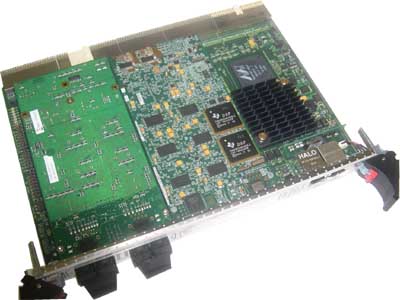

Above: OC3 STM-1 combined with SigC641x PMC module on PCI carrier

The picture at right shows the NAT OC3 STM-1 PMC module



  • PCI Rev. 2.2, 33MHz/32bit

  • H.110 (PTMC) and SCSA subset

  • Two OC3 SDH/STM1 optical fibre on standard connector at front panel (SC duplex single or multi mode tranceiver)

  • 4 software programmable LEDs at the front panel

  • 3.3V 2.2A (max.), estimated

  • P1386 and P1386.1/Draft 2.0
