SigC67xx-PC/104 Images

SigC67xx-PC/104 Board, Top View, with one (1) SigC6711 processor module and one (1) SigSD4 4-channel audio module installed (on bottom side). Click here to see full-size picture

SigC67xx-PC/104 Board, Top View, without modules installed. Host interface PLD logic, T1/E1 interface, TDM routing logic, RS-232 DUART, and boot / FLASH EEPROM shown. Click here to see full-size picture

Click to see full size image

SigC67xx-PC/104 Board, Bottom View, without modules installed. RS-232 drivers and RS-422/3 drivers shown. Click here to see full-size picture

SigC67xx-PC/104 Board, Top View, With Modules Installed

SigC67xx-PC/104 Board, Top View, with one (1) SigC6711 processor module and one (1) SigSD4 4-channel audio module installed (on bottom side)

SigC67xx-PC/104 Board, Top View, No Modules Installed

SigC67xx-PC/104 Board, Top View, without modules installed

SigC67xx-PC/104 Board, Bottom View, No Modules Installed

SigC67xx-PC/104 Board, Bottom View, without modules installed

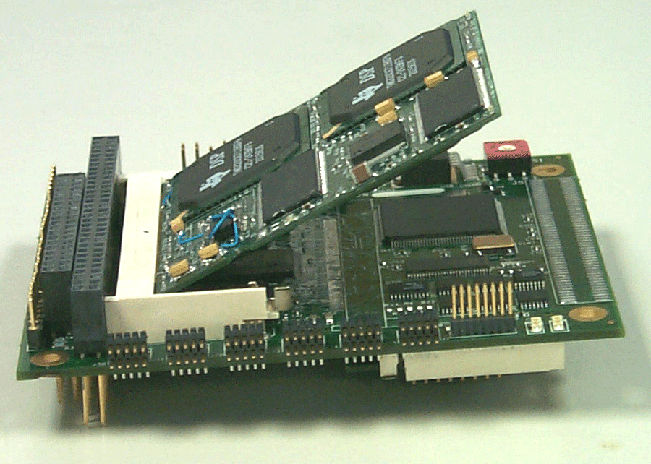

SigC67xx-PC/104 Board, Top View With Module Partly Installed

SigC67xx-PC/104 Board, top view with module partly installed
