Hypersignal®-Acoustic Software

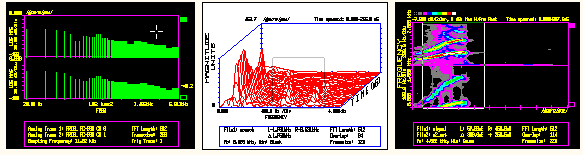

Example time and frequency domain waveform displays produced by Hypersignal-Acoustic software

Hypersignal®-Acoustic is a superset of Hypersignal-Macro software; for a description of functions common to both packages, click on Hypersignal®-Macro software. Below is a partial description of functions and display/instrument options found only in Hypersignal-Acoustic software:

Equalization

Input for equalization processing in Hypersignal-Acoustic can come from either real-time Spectrum Analyzer analog input channels, or from waveform files. In the case of waveform files, data can be imported from Techron ".TDS" format, or from Ariel SYSid format. The equalization macro function in Hypersignal-Acoustic first freezes the Spectrum Analyzer display (either real-time input or waveform file input), then creates an inverted magnitude frequency response. The inverted magnitude response and unchanged phase response are converted to real and imaginary data which is iFFT'd into the time domain. The resulting FIR filter can be used to equalize the original magnitude response; it can also be applied in real-time using the Real-Time Convolver® software add-on.

1/N Octave Band Display Option in Spectrum Analyzer

The 1/N Octave Band display option allows log-magnitude traces (either real-time analog input or waveform file input) to be viewed in common acoustic/audio formats such as 1/3, 1/6, and 1/12 octave band.

MLS Stimulus & Response

The MLS (Maximum Length Sequence) stimulus & response function in Hypersignal-Acoustic includes user inputs such as stimulus length, number of averages, output waveform filename, sampling frequency, channel list, and stimulus amplitude and offset. It uses the currently installed DSP/analog hardware to perform the stimulus & response operation, then synchronously averages the results in the time domain, and finally performs cross-correlation and FFT operations to calculate impulse and frequency response waveforms for the device under test.

The MLS function requires that stimulus length should be entered in seconds; it then calculates an actual stimulus in samples by taking the entered value, multiplying it by the entered sampling rate, and quantizing the result upwards to the nearest allowable MLS length. Quantization is due to the nature of the MLS process, which requires stimulus lengths to be a power of 2 minus 1; for example, 4095, 8191, 16383, 32767, and 65535. It is important to remember that some DSP hardware can achieve only certain sampling rates, so it is a good idea to know something about DSP/analog hardware ahead of time if exact and/or maximum stimulus lengths are important.

Below is a short list of example DSP/analog boards, the amount of data memory available for use by Hypersignal-Acoustic when shipped with Signalogic-recommended memory amounts, and the maximum stimulus size. Memory amounts amounts are in words (natural wordlength of DSP device) and given in two values: Signalogic recommended amount that should be shipped with the board, and actual stimulus area available (excluding program area and input buffers). Memory amounts marked with "**" can be packed double because the memory is accessible in words (16-bit values) as well as 32-bit values. Stimulus size values are in samples. For precise information about hardware, please contact Signalogic about obtaining a copy of the Hypersignal®-Macro Series "Hardware Reference Guide".

Example Hardware with MLS
Board Total Mem Stimulus Mem Max MLS Stimulus Size
Ariel DSP-32C 64k** 96k 32767
Ariel PC-56D + ProPort 64k 20k 262143++
Ariel DSP-16 64k 20k 8191
TBS Tahiti 32k 12k 262143++
CAC QUANTUMdsp 512k** 984k 262143
Innovative Integration PC31 128k 96k 32767
National Instruments AT-DSP2200 384k** 728k 262143
Signalogic Sig32C-8 128k** 192k 65535
Techron TEF20HI 48k 16k 262143++

++Indicates dynamic onchip generation of MLS output, which avoids stimulus memory limitation. Currently active only for some DSP5600x hardware and some stimulus lengths.

**Memory architecture accepts stimulus values in 16-bit words.

Distortion Measurement

The distortion measurement function in Hypersignal-Acoustic uses the noise generator option in the Spectrum Analyzer to send a specified sine wave to the installed DSP/analog hardware D/A output while the analyzer is running. THD and THD+noise measurements can then be made and viewed onscreen or accessed by a macro language program. The distortion measurement macro program that ships with Hypersignal-Acoustic makes repeated Spectrum Analyzer measurements to create a waveform plot of distortion vs. frequency for a device under test.

Schroeder Integration

The Schroeder integration function in Hypersignal-Acoustic uses a difference equation to calculate a "reverse time integration" and save the results to an output time domain waveform file. The resulting waveform file can be viewed in log-amplitude format and onscreen slope (decay) measurements can be used to estimate RTnn values (e.g. RT60).

Reverse-Time Option in 3-D Waterfall Display

The Reverse-Time display option allows spectra with time-delay characteristics to be better viewed in the 3-D waterfall frequency domain display.

Log-Amplitude Display Option in Time Domain Waveform Display/Editing

The Log-Amplitude display option allows time domain waveforms to be viewed and edited in either log or linear amplitude format. Log amplitude display is essential for display of output of some functions, such as Schroeder integration (see above).

Specialized Device Drivers

Hypersignal-Acoustic drivers include Techron TEF20HI, Ariel ProPort, DatPort, and Digital Microphone. Other notable device drivers (contained in Hypersignal-Macro packages also), include the Turtle Beach Systems Multisound and Tahiti, National Instruments AT-DSP2200 (see Real-Time Convolver), Sig56-2, and SigC31-4
