DirectCore software model supports multiple x86 and/or coCPU cores
the DirectCore® software model supports multiple x86 and/or coCPU™ cores

DirectCore APIs support C/C++ user applications
DirectCore® APIs support C/C++ user applications

DirectCore® Software


Overview

DirectCore® software is a shared library module, part of the SigSRF software SDK ◳. DirectCore is deployed by Tier 1 carriers and LEAs as part of SBC, media gateway, and Lawful Interception applications. SigSRF software, including DirectCore, is the basis of the DeepLI™ Lawful Interception solution, which is deployed by FBI level LEAs and thus indirectly used by carriers, ISPs, and IMs such as Skype, Google Voice, and WhatsApp.

DirectCore currently supports Ubuntu, CentOS, and Redhat Linux, providing key SigSRF functionality: DirectCore was formerly called "DirectDSP" and also supported Windows C/C++ applications, Visual Basic ◳, and MATLAB® ◳. If you need support for legacy applications, or for new Windows C/C++, VB, or MATLAB applications, please contact Signalogic.

Functionality

Functionality provided by DirectCore includes:

Multiuser Operation

As expected in high level Linux applications, DirectCore allows true multiuser operation, without time-slicing or batch jobs. Multiple host and VM instances can allocate and utilize c66x resources concurrently. How this works is described in sections below (see DirectCore Host and Guest Drivers and DirectCore Libraries).

TI-RTOS and Bare Metal Support

DirectCore supports both TI-RTOS and bare metal applications.

Debug Capabilities

Unified Core List

DirectCore merges all c66x cards in the system, regardless of number of CPUs per card, and presents a unified list of cores. This is consistent with Linux multicore models and is required to support virtualization. Most DirectCore APIs accept a core list parameter (up to 64), allowing API functionality to be applied to one or more cores as needed. Within one host or VM instance, for cores lists longer than 64, multiple "logical card" handles can be opened using the DSAssignCard() API.

Symbol Lookup

DirectCore provides physical and logical addresses for c66x source code symbols (variables, structures, arrays, etc). A symbol lookup cache reduces overhead for commonly used symbols.

DirectCore Host and Guest Drivers

DirectCore drivers interact with c66x PCIe cards from either host or guest instances (VMs). Host instances use a "physical" driver and VMs use virtIO "front end" drivers. Drivers are usually loaded upon server boot, but can be loaded and unloaded manually. Some notable driver capabilities:

DirectCore APIs

DirectCore libraries provide a high level API for applications, and are used identically by both host and guest (VM) instances. Some notes about DirectCore APIs:

Software Model

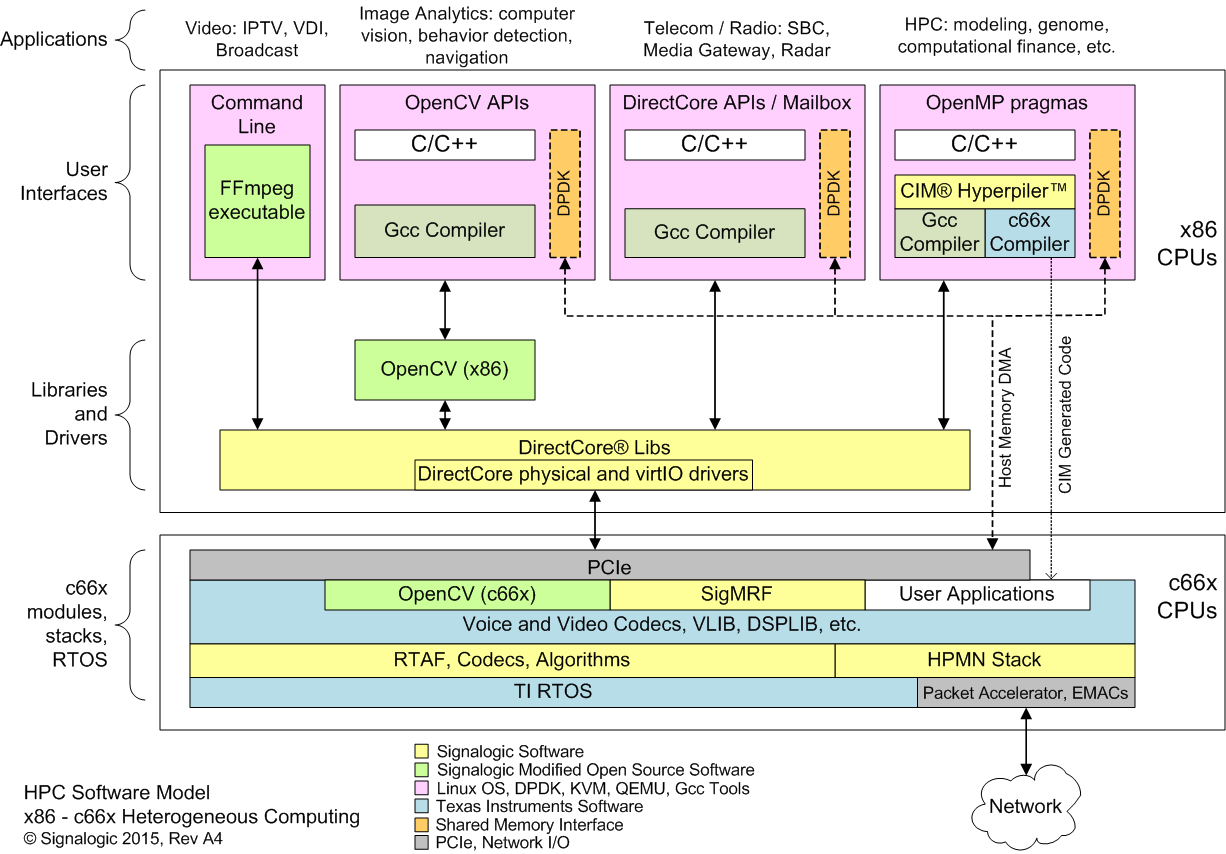

Below is a diagram showing where DirectCore libs and drivers fit in the server HPC software architecture for c66x CPUs.

Some notes about the above diagram:

Minimum Host Application Source Code Example

For non-transparent, or "hands on" mode, the source example below gives a minimum number of DirectCore APIs to make a working program (sometimes called the Hello World program). From a code flow perspective, the basic sequence is:
 open			assign card handles
 init
 reset
 load			download executable code
 run
 communicate		read/write memory, mailbox messages, etc.
 reset
 close			free card handles

> In the source code example below, some things to look for:
/*
   $Header: /root/Signalogic/DirectCore/apps/SigC641x_C667x/boardTest/cardTest.c

   Purpose:

     Minimum application example showing use of DirectCore APIs

   Description:

     host test program using DirectCore APIs and SigC66xx multicore CPU accelerator hardware

   Copyright (C) Signalogic Inc. 2014-2019

   Revision History

     Created Nov 2014 AKM
     Modified Jan 2016, JHB.  Simplify for web page presentation (remove declarations, local functions, etc).  Make easier to read

*/

#include <stdio.h>
#include <sys/socket.h>
#include <limits.h>
#include <unistd.h>
#include <sys/time.h>

/* Signalogic header files */

#include "hwlib.h"    /* DirectCore API header file */
#include "cimlib.h"   /* CIM lib API header file */

/* following header files required depending on application type */

#include "test_programs.h"
#include "keybd.h"

/* following shared host/target CPU header files required depending on app type */

#ifdef APP_SPECIFIC
  #include "streamlib.h"
  #include "video.h"
  #include "ia.h"
#endif

/* Global vars */

QWORD        nCoreList = 0;   /* bitwise core list, usually given in command line */
bool         fCoresLoaded = false;

/* Start of main() */

int main(int argc, char *argv[]) {

HCARD       hCard = (HCARD)NULL;  /* handle to card.  Note that multiple card handles can be opened */
CARDPARAMS  CardParams;
int         nDisplayCore, timer_count;
DWORD       data[120];

/* Display program header */

   printf("DirectCore minimum API example for C66x host and VM accelerators, Rev 2.1, Copyright (C) Signalogic 2015-2016\n");

/* Process command line for basic target CPU items:  card type, clock rate, executable file */

   if (!cimGetCmdLine(argc, argv, NULL, CIM_GCL_DEBUGPRINT, &CardParams, NULL)) exit(EXIT_FAILURE);

/* Display card info */

   printf("Accelerator card info: %s-%2.1fGHz, target executable file %s\n", CardParams.szCardDescription, CardParams.nClockRate/1e9, CardParams.szTargetExecutableFile);

/* Assign card handle, init cores, reset cores */

   if (!(hCard = cimInitHardware(CIM_IH_DEBUGPRINT, &CardParams))) {  /* use CIM_IH_DEBUGPRINT flag so cimInitHardware will print error messages, if any */

      printf("cimInitHardware failed\n");
      exit(EXIT_FAILURE);
   }

   nCoreList = CardParams.nCoreList;

/*
   If application specific items are being used, process the command line again using flags and
   structs as listed below (note -- this example gives NULL for the application specific struct)

   App                 Flag          Struct Argument (prefix with &)
   ---                 ----          -------------------------------

   VDI                 CIM_GCL_VDI   VDIParams
   Image Analytics     CIM_GCL_IA    IAParams
   Media Transcoding   CIM_GCL_MED   MediaParams
   Video               CIM_GCL_VID   VideoParams
   FFT                 CIM_GCL_FFT   FFTParams
*/

   if (!cimGetCmdLine(argc, argv, NULL, CIM_GCL_DEBUGPRINT, &CardParams, NULL)) goto cleanup;

/* Load executable file(s) to target CPU(s) */

   printf("Loading executable file %s to target CPU corelist 0x%lx\n", CardParams.szTargetExecutableFile, nCoreList);

   if (!(fCoresLoaded = DSLoadFileCores(hCard, CardParams.szTargetExecutableFile, nCoreList))) {

      printf("DSLoadFileCores failed\n");
      goto cleanup;
   }

/* Run target CPU hardware.  If required, give application type flag and pointer to application property struct, as noted in comments above */

   if (!cimRunHardware(hCard, CIM_RH_DEBUGPRINT | (CardParams.enableNetIO ? CIM_RH_ENABLENETIO : 0), &CardParams, NULL)) {

      printf("cimRunHardware failed\n");  /* use CIM_RH_DEBUGPRINT flag so cimRunHardware will print any error messages */
      goto cleanup;
   }

   nDisplayCore = GetDisplayCore(nCoreList);
   DSSetCoreList(hCard, (QWORD)1 << nDisplayCore);

   printf("Core list used for results display = 0x%llx\n", (unsigned long long)((QWORD)1 << nDisplayCore));


/* Start data acquisition and display using RTAF components */

   setTimerInterval((time_t)0, (time_t)1000);
   printf("Timer running...\n");

   while (1) {  /* we poll with IsTimerEventReady(), and use timer events to wake up and check target CPU buffer ready status */

      ch = getkey();  /* look for interactive keyboard commands */

      if (ch >= '0' && ch <= '9') {

         nDisplayCore = ch - '0';

         DSSetCoreList(hCard, (QWORD)1 << nDisplayCore);
      }
      else if (ch == 'Q' || ch == 'q' || ch == ESC) goto cleanup;

      if (IsTimerEventReady()) {

      /* check to see if next data buffer is available */

         if ((new_targetbufnum[nDisplayCore] = DSGetProperty(hCard, DSPROP_BUFNUM)) != targetbufnum[nDisplayCore]) {

            targetbufnum[nDisplayCore] = new_targetbufnum[nDisplayCore];  /* update local copy of target buffer number */

            printf("Got data for core %d... count[%d] = %d\n", nDisplayCore, nDisplayCore, count[nDisplayCore]++);

            if (dwCode_count_addr != 0) {

               DSReadMem(hCard, DS_RM_LINEAR_PROGRAM | DS_RM_MASTERMODE, dwCode_count_addr, DS_GM_SIZE32, &timer_count, 1);
               printf("Timer count value = %d\n", timer_count);
            }

         /* read data from target CPUs, display */

            if (DSReadMem(hCard, DS_RM_LINEAR_DATA | DS_RM_MASTERMODE, dwBufferBaseAddr + nBufLen * 4 * hostbufnum[nDisplayCore], DS_GM_SIZE32, (DWORD*)&data, sizeof(data)/sizeof(DWORD))) {

               hostbufnum[nDisplayCore] ^= 1;  /* toggle buffer number, let host know */

               DSSetProperty(hCard, DSPROP_HOSTBUFNUM, hostbufnum[nDisplayCore]);

               for (int i=0; i<120; i+=12) {

                  for (int j=0; j<12; j++) printf("0x%08x ", data[i+j]); printf("\n");
               }
            }
         }
      }
   }

cleanup:

   if (fCoresLoaded) SaveC66xLog(hCard);

   printf("Program and hardware cleanup, hCard = %d\n", hCard);

/* Hardware cleanup */

   if (hCard) cimCloseHardware(hCard, CIM_CH_DEBUGPRINT, nCoreList, NULL);
}


/* Local functions */

int GetDisplayCore(QWORD nCoreList) {

int nDisplayCore = 0;

   do {

      if (nCoreList & 1) break;
      nDisplayCore++;

   } while (nCoreList >>= 1);

   return nDisplayCore;
}

Mailbox Create Examples

Send and receive mailbox creation API examples are shown below. Send means host CPU cores are sending mail to target CPU cores, and receive means host CPU cores are receiving messages from target CPU cores.

/* Allocate send mailbox handle (send = transmit, or tx) */

   if (tx_mailbox_handle[node] == NULL) {

      tx_mailbox_handle[node] = malloc(sizeof(mailBoxInst_t));

      if (tx_mailbox_handle[node] == NULL) {
         printf("Failed to allocate Tx mailbox memory for node = %d\n", node);
         return -1;
      }
   }

/* Create send mailbox */

   mailBox_config.mem_start_addr = host2dspmailbox + (nCore * TRANS_PER_MAILBOX_MEM_SIZE);
   mailBox_config.mem_size = TRANS_PER_MAILBOX_MEM_SIZE;
   mailBox_config.max_payload_size = TRANS_MAILBOX_MAX_PAYLOAD_SIZE;

   if (DSMailBoxCreate(hCard, tx_mailbox_handle[node], MAILBOX_MEMORY_LOCATION_REMOTE, MAILBOX_DIRECTION_SEND, &mailBox_config, (QWORD)1 << nCore) != 0) {

      printf("Tx DSMailboxCreate() failed for node: %d\n", node);
      return -1;
   }

/* Allocate receive mailbox handle (receive = rx) */

   if (rx_mailbox_handle[node] == NULL) {

      rx_mailbox_handle[node] = malloc(sizeof(mailBoxInst_t));

      if (rx_mailbox_handle[node] == NULL) {
         printf("Failed to allocate Tx mailbox memory for node = %d\n", node);
         return -1;
      }
   }

/* Create receive mailbox */

   mailBox_config.mem_start_addr = dsp2hostmailbox + (nCore * TRANS_PER_MAILBOX_MEM_SIZE);

   if (DSMailboxCreate(hCard, rx_mailbox_handle[node], MAILBOX_MEMORY_LOCATION_REMOTE, MAILBOX_DIRECTION_RECEIVE, &mailBox_config, (QWORD)1 << nCore) != 0) {

      printf("Rx DSMailboxCreate() failed for node: %d\n", node);
      return -1;
   }

Mailbox Query and Read Examples

Source code excerpts with mailbox query and read API examples are shown below. Some code has been removed for clarity. These examples are processing "session" actions, for example a media transcoding application. Other application examples would include streams (video), nodes (analytics), etc.

/* query and read mailboxes on all active cores */

   nCore = 0;

   do {

      if (nCoreList & ((QWORD)1 << nCore)) {

         ret_val = DSQueryMailbox(hCard, (QWORD)1 << nCore);

         if (ret_val < 0) {

            fprintf(mailbox_out, "mailBox_query error: %d\n", ret_val);
            continue;
         }

         while(ret_val-- > 0) {

            ret_val = DSReadMailbox(hCard, rx_buffer, &size, &trans_id, (QWORD)1 << nCore);

            if (ret_val < 0) {

               fprintf(mailbox_out, "mailBox_read error: %d\n", ret_val);
               continue;
            }

            memcpy(&header_in, rx_buffer, sizeof(struct cmd_hdr));

            if (header_in.type == DS_CMD_CREATE_SESSION_ACK) {
               :
               :
            }
            else if (header_in.type == DS_CMD_DELETE_SESSION_ACK) {
               :
               :
            }
            else if (header_in.type == DS_CMD_EVENT_INDICATION) {
               :
               :
            }
         }
      }

      nCore++;

   } while (nCoreList >> 1);

CardParams Struct

The CardParams struct shown in the above "minimum" source code example is given here.

typedef struct {

/* from command line */

  char          szCardDesignator[CMDOPT_MAX_INPUT_LEN];
  char          szTargetExecutableFile[CMDOPT_MAX_INPUT_LEN];
  unsigned int  nClockRate;
  QWORD         nCoreList;

/* derived from command line entries */

  char          szCardDescription[CMDOPT_MAX_INPUT_LEN];
  unsigned int  maxCoresPerCPU;
  unsigned int  maxCPUsPerCard;
  unsigned int  maxActiveCoresPerCard;

  unsigned int  numActiveCPUs;   /* total number of currently active CPUs (note: not max CPUs, but CPUs currently in use) */
  unsigned int  numActiveCores;  /* total number of currently active cores (note: not max cores, but cores currently in use) */

  bool          enableNetIO;     /* set if command line params indicate that network I/O is needed.  Various application-specific params are checked */

  WORD          wCardClass;
  unsigned int  uTestMode;
  bool          enableTalker;    /* not used for c66x hardware */

  CIMINFO       cimInfo[MAXCPUSPERCARD];

} CARDPARAMS;  /* common target CPU and card params */

typedef CARDPARAMS* PCARDPARAMS;

Installing / Configuring VMs

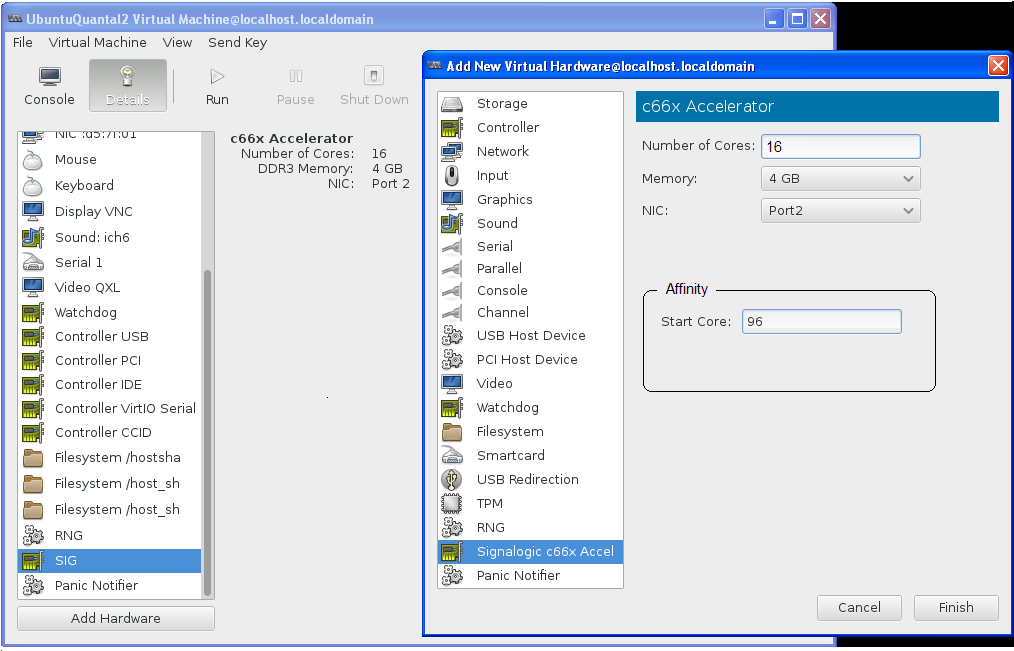

Below is a screen capture showing VM configuration for c66x accelerator cards, using the Ubuntu Virtual Machine Manager (VMM) user interface:

c66x core allocation is transparent to the number of PCIe cards installed in the system; just like installing memory DIMMs of different sizes, c66x cards can be mixed and matched.
